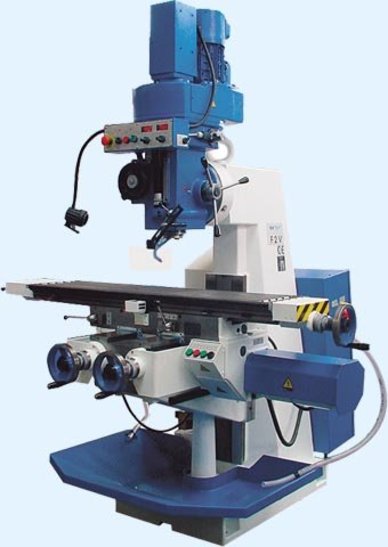

F2V freesmachine
Merk : TOS Olomouc
Type : F2V
X / Y / Z - 840 / 376 / 420 mm
Productomschrijving
| Knee-type milling machine F2V | ||
| TABLE | ||
| table size | mm | 300 x 1300 |
| clamping slots | ||
| number |
5 |
|
| width & spacing | mm | 14 x 50 |
| maximal table load | kg | 200 |
| Travel | ||
| longitudinal (X) | mm | 840 |
| cross (Y) | mm | 376 |
| vertical (Z) | mm | 420 |
| feeds | ||
| number of feed rates | stepless | |
| range X,Y | mm/min | 28 - 630 |
| range Z | mm/min | 8,5 - 196 |
| rapid traverse | ||
| X,Y | mm/min | 1500 |
| Z | mm/min | 450 |
| SPINDLE | ISO 40 | |
| distance of spindle axis from frame quide ways | mm | 373 |
| revolutions - steplees | ot/min | 70 - 4000 |
| bilateral spindle nose swivelling | ± 90 ° | |
| motor power | kW | 2,2 |
| quill shift out | mm | 125 |
| Machine shift-out of quill | ||
| number of feed rates | 3 | |
| I. rate | mm/ot | 0,035 |
| II. rate | mm/ot | 0,071 |
| III. rate | mm/ot | 0,140 |
| MACHINE | ||
| max. power input | kVA | 6,8 |
| weight | kg | 1550 |
| floor space | mm | 2660 x 1730 |
| height |
mm |
2270 |
