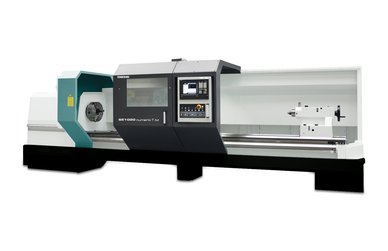

SE 1020 numeric draaimachine
Merk : TOS Trens
Type : SE 1020 numeric
Ø 1020 mm, l = 2000 - 4000 mm
Productomschrijving
SE 1020 NUMERIC is intended not only for turning simple large-sized rotational components but, in combination with out-of-the-axis boring and milling, also for processing complicated workpieces with demanding shapes, both from parted or bar materials and from solid semi-products. A high variability of fabrications and the quantity of additional equipment provide the opportunity to compose various specifications of the new machine as per the customer’s individual needs.
Operating range
| Distance between centres | 2000, 3000*,4000* mm |
| Swing over bed | 1020 mm |
| Swing over cross slide | 735 mm |
| Chuck diameter | 400/500* mm |
Tool post
| Tool-holding fixture | MULTIFIX C,D* | |
Spindle
| Spindle drilling | 133 mm | |
| Spindle nose | ISO 702/I A2-11 | |
| Range of the 1st gear | 1 – 415 min -1 (rpm) | |
| Range of the 2nd gear | 1 – 1600 min -1 (rpm) | |
