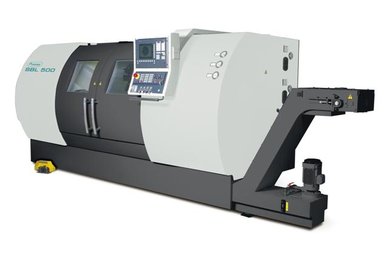

SBL 500 CNC draaimachine
Merk : TOS Trens
Type : SBL 500 CNC
Ø 630 mm, l = 750 - 1500 mm
Productomschrijving
Excellent features, in particular, the repeated accuracy results in turning, predestine this machine tool for production in medium and large series, in the field of sophisticated machining of both metal and plastic work pieces with complicated geometrical shapes. The machine tool is ready to operate in full automatic mode in combination with the work piece continuous feeders and the parts catcher. This method enables you to achieve high production effectiveness in machining such work pieces as bearing rings or different flange or shaft parts for automotive industries.
Operating range
| Swing over slide-way covers | 630 mm | 24,8 inch |
| Swing over the jaw chuck and tailstock | 405 mm | 15,94 inch |
| Turning length between the jaw chuck and tailstock |
750, 1500 mm | 30/60 inch |
| Max. jaw chuck diameter | 254, 315 mm | 10/12,40 inch |
Spindle:
| Spindle nose - size | DIN 55026 A2-8, A2-11 | |
| Spindle bore | 92, 133 mm | 3,62 / 5,23 inch |
| Internal taper of the spindle - metric | 100 | |
Weight:
| with standard accessories | 5250/6620 kg | 11574,27/14594,60 lbs |
