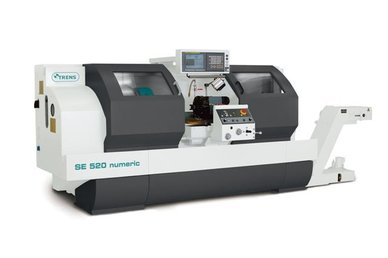

SE 520 numeric draaimachine

Merk : TOS Trens
Type : SE 520 numeric

Ø 520 mm, l = 1000 - 1500 mm


Productomschrijving

SE 520 NUMERIC is the type of the machine tool designed for engineering production in medium and batch series or piece production. It has been designed for precision machining of either simple or shape-sophisticated plastic and metal work pieces. The machine tool has also been applicable as a teaching aid for both secondary schools and universities in the field of engineering. The machine tool has been operable in either the manual mode using the electronic wheels or, thanks to the up-to-date control system, in the automatic cycle. This creates new options in both piece and batch production.

Productfolder (.pdf)



TECHNICAL PARAMETRES

Operating range

Distance between centres 1000, 1500 mm 40 / 60 inch
Swing over bed 520 mm 20,47 inch
Swing over cross slide 290 mm 11,41 inch
Chuck diameter 250/315 mm 9,84/12,40 inch

Tool post
Tool-holding fixture MULTIFIX C

Weight
(without special accessories) 2700, 2900 kg
  5952,48/6393,40 lbs
