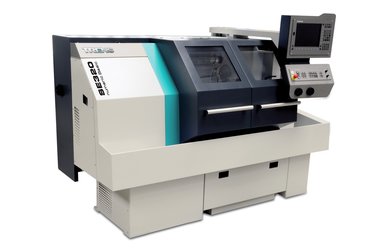

SE 320 numeric draaimachine

Merk : TOS Trens
Type : SE 320 numeric

Ø 320 mm, l = 750 mm


Productomschrijving

SE 320 NUMERIC is the type of the machine tool designed for engineering production in medium and batch series or piece production. It has been designed for precision machining of either simple or shape-sophisticated flanged and shafted plastic and metal work pieces. It enables turning external and internal cylindrical, conical and complex-shaped areas and, of course, all types of threads. The machine tool has also been applicable as a teaching aid for both secondary schools and universities in the field of engineering. The machine tool has been operable in either the manual mode using the electronic wheels or, thanks to the up-to-date control system, in the automatic cycle. This creates new options in both piece and batch production.

Productfolder (.pdf)



TECHNICAL PARAMETRES

Operating range

Distance between centres 750 mm 30 inch
Swing over bed 320 mm 12,59 inch
Swing over cross slide 170 mm 6,69 inch
Chuck diameter 160/200 mm 6,29/7.87 inch

Tool post
Tool-holding fixture   MULTIFIX B

Weight
(without special accessories) 1600 kg 3527,39 lbs
