FGV 32 freesmachine
Merk : TOS Olomouc
Type : FGV 32
X / Y / Z - 1000 / 300 / 420 mm
Productomschrijving
|

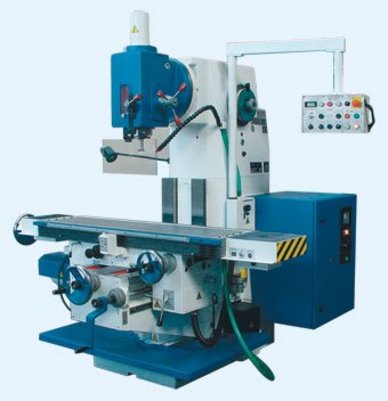

Knee-type milling machine FGV 32
|
|
|
TABLE
|
|
|
table size
|
mm
|
360 x 1400
|
clamping slots
|
|
|
number
|
|
4
|
width & spacing
|
mm
|
18 x 63
|
maximal table load
|
kg
|
250
|
travel
|
|
|
longitudinal (X)
|
mm
|
1000
|
cross (Y)
|
mm
|
300
|
vertical (Z)
|
mm
|
420
|
feeds
|
|
|
number of feed rates
|
|
stepless
|
range X,Y
|
mm/min
|
20 - 900
|
range Z
|
mm/min
|
5,7 - 250
|
rapid traverse
|
|
|
X,Y
|
mm/min
|
1635
|
Z
|
mm/min
|
460
|
SPINDLE
|
|
ISO50
|
distance of spindle axis from frame quide ways
|
mm
|
370
|
Revolutions
|
|
|
number of feed rates
|
|
12
|
basic range
|
r.p.m.
|
31,5 - 1400
|
speed range
|
r.p.m.
|
45 - 2000
|
bilateral spindle nose swivelling
|
|
± 45 °
|
motor power
|
kW
|
5,5
|
quill shift out
|
mm
|
75
|
MACHINE
|
|
|
max. power input
|
kVA
|
13
|
weight
|
kg
|
2860
|
floor space
|
mm
|
2995 x 2000
|
height
|
mm
|
2100
