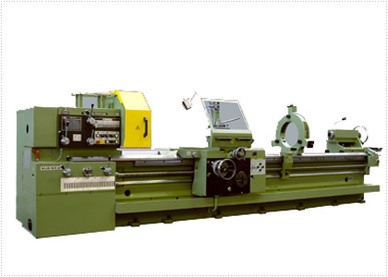

SU 80 H draaimachine
Merk : TOS Celakovice
Type : SU 80 H
Ø 840 mm, l = 3500 - 14000 mm
Productomschrijving
Machine useUniversal centre lathes SU 80 H are intended for roughing and finishing work, for thread cutting and boring on shaft and flange components. They allow machining up to weight 8 000 kg. They are intended for single-piece and small-batch production. Their universality is expanded by large range of special accessory.
| |
| Technical parameters | |
|---|---|
| Operating range | |
| Swing Ø over bed | 840 mm |
| Swing Ø over carriage saddle | 530 mm |
| Swing Ø over extended saddle with T-grooves | 450 mm |
| Centre-to-centre distance | 3 500, 5 000, 6 500, 8 000 mm, max 14 000 mm |
| Max. weight of workpiece (without rest / with rest) |
6 000 / 8 000 kg |
| Spindle | size 11, DIN 55027, bayonet |
| Bore | 82 mm |
| Speed range | 7,1–900 min-1 |
| Main motor power | 18,5 Kw |
| Tailstock | |
| Tailstock sleeve | Ø 130 mm |
| Inner cone | MK6 |
| Reduction insert | |
| Total input power | 20 kVA |
| Weight | 5 200 - 10 300 kg |
