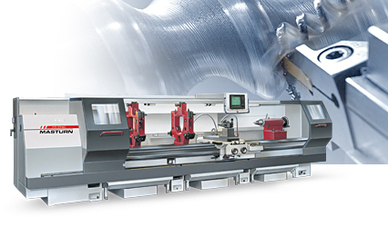

MASTURN 70 CNC- 4500 draaimachine
Merk : MAS Kovosvit
Type : MASTURN 70 CNC- 4500
Ø 830 mm, dist. c. 4500 mm
Productomschrijving
Machine highlights
- Simple machine, suitable for piece and small lot production of parts
- High precision, performance, easy operation
- Constant cutting speed - part machining of high quality
- Graphic simulation of machining
- 96 tool corrections
- Possibility of machining by means of manual control as on conventional lathe or by means of automatic cycles with CNC system support running on the basis of fixed cycles
- Program can be written as contour programming or DIN programming
- Cutting conditions and geometrical data of the part shape are entered by means of keyboard in control system which processes them automatically
- On demand, the software for creation of programs and their realization in your PC is available
| Working range | ||
| Swing over bed | mm | 820 |
| Swing over cross slide | mm | 530 |
| Distance between centres | mm | 4500 |
| Spindle | ||
| Spindle nose (DIN 55027) | - | B11, C11 |
| Spindle bore | mm | 128 |
| Control system | ||
| Control system | - | HEIDENHAIN |
| MANUAL plus 4110 | ||
| SIEMENS MANUAL TURN | ||
| Main drive | ||
| Motor output | kW | 28 / 22 |
| Automatic two speed gearbox | ||
| Spindle speed range | rpm | 0-1800 |
| Max. spindle torque - 1st gear | Nm | 3000 |
| Max. spindle torque - 2nd gear | Nm | 540 |
| Axis X | ||
| Max. travel | mm | 370 |
| Axis X | ||
| Max. travel | mm | 4500 |
| Tool head | Multifix D1 | |
| Max. tool section | mm | 40x40 |
| Tailstock | ||
| Sleeve taper - MORSE | - | 6 |
| Machine dimensions | ||
| Length x width x height | mm | 6500x1840x1860 |
| Weight | kg | 7000 |
