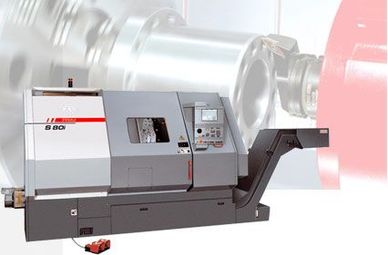

S 80i CNC draaimachine
Merk : MAS Kovosvit
Type : S 80i
Max Ø 465 mm, max. l. 1080 mm
Productomschrijving
Machine highlights
- Highly efficient turning machines designed for precise machining of components from bars as well as for machining of flangetype parts and shafts. They are equipped with an electrically controlled twelve-station turret, manually, displaceable tailstock, AC regulating drives of the spindle and feeds and with control system of FANUC, HEIDENHAIN, SIEMENS. The machines S 50i, S 80i are available in two versions - STANDARD and PRIM. The machine version PRIM is fitted additionally with driven tools and the controlled C-axis.
| Working range | ||
| Max. dia of turning | mm | 465 |
| Max. dia of bar stock | mm | 80 |
| Max. length of shaft turning | mm | 1080 |
| Max. swing dia over bed | mm | 680 |
| Spindle | ||
| Spindle nose (DIN 55026) | - | A8 |
| Speed range | rpm | 20-3800 |
| Motor power output/ 60%ED (Siemens) | kW | 17 / 20,5 |
| Carriage & cross slide | ||
| Travel in Z - axis | mm | 1070 |
| Travel in X - axis | mm | 275 |
| Upper turret | ||
| Number of stations | - | 12 |
| Machine versions PRIM | ||
| Live tooling | - | ano |
| C - axis | - | ano |
| Machine dimensions | ||
|
Length x width x height |
mm |
3330 x 2070 x 2210 |
| Weight | kg | 8000 |
