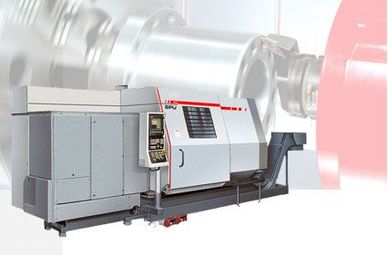

SPU 40 CNC draaimachine
Merk : MAS Kovosvit
Type : SPU 40 CNC
max. Ø 400 mm, max. l. 1000/1500/2500 mm
Productomschrijving
Machine highlights
- Highly efficient lathe machines for the precise components machining from bars, flange and shaft machining
- Machines are equipped with tool turrets for the high productivity of machining
- Modular construction of these machines allows to offer to customer the machine according to his requirements
- Rigidity of the machine and its stability are guaranteed by the machine frame from the grey iron and by the application of the slide way for the placing the linear axes
| Working range | v. 1000 / 1500 / 2500 | |
| Max. swing dia. over bed | mm | 610/610/600 |
| Max. turning dia. | mm | 400 (500) |
| Max. turning length | mm | 1000/1500/2500 |
| Spindle | ||
| Spindle nose (DIN 55026), size A (Opt.) | - | 11 |
| Max. bar stock capacity | mm | 80 |
| Main motor output (Option) | kW | 30; 37 |
| Spindle speed range | rpm | 25 - 3150 |
| Upper saddle Z | ||
| Travel | mm | 1170/1590/2780 |
| Rapid traverse | m/min | 12 |
| Upper cross slide X | ||
| Travel | mm | 310 |
| Rapid traverse | m/min | 10 |
| Lower saddle W | ||
| Travel | mm | 1160/1600/2810 |
| Rapid traverse | m/min | 12 |
| Upper cross slide U | ||
| Travel | mm | 220 / 220 / - |
| Rapid traverse | m/min | 10 |
| Upper turret | ||
| Number of positions | - | 12 |
| Lower turret | ||
| Number of positions | - | 8 / 8 / - |
| Machine dimensions | ||
| Length x width x height | mm | 5060x2529x2360 |
| 5490x2470x2360 | ||
| 6770x2554x2310 | ||
| Weight | kg | 10 500 - 15 000 |
