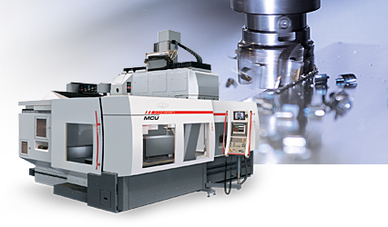

MCU 3000 CNC freesmachine portaal
Merk : MAS Kovosvit
Type : MCU 3000
X / Y / Z - 3000 / 1500 / 1000 mm
Productomschrijving
Machine highlights
- Machine versions: SPEED, SPRINT, POWER
- Five-axis machine variant as option: - with additional rotary and tilting table
- High precision and dynamics of axes X,Y,Z (rapid traverses 30 m.min-1;acceleration 5 m.s-2)
- Large working space
- Coolant through tool - 2 MPa
- Central lubrication
- Wide opening of the machine guard doors - easy loading of bulky workpieces in working space
- Electrical drives for front guard doors shifting (at extra cost)
- The machine satisfies fully requirements of safety standards valid in EU countries
| Table | ||
| Table clamping surface | mm | 3 250 x 1 475 |
| Max. table load | kg | 18 000 |
| Working travel in axes X, Y, Z | mm | 3000 x 1500 x 1000 |
| Spindle - MCU 3000 SPEED | ISO 40 (HSK - A63) | |
| Max. speed |
rpm |
12 000 |
| Spindle motor output (S1/S6 - 40%) | kW | 33 / 45 |
| Max. torque (S1/S6 - 40%) | Nm | 157 / 215 |
| Spindle - MCU 3000 SPRINT | HSK - A63 | |
| Max. speed |
rpm |
18 000 |
| Spindle motor output (S1/S6 - 40%) | kW | 25 / 35 |
| Max. torque (S1/S6 - 40%) | Nm | 87 / 130 |
| Spindle - MCU 3000 POWER | ISO 50 | |
| Max. speed |
rpm |
8 000 |
| Spindle motor output (S1/S6 - 40%) | kW | 28 / 43 |
| Max. torque (S1/S6 - 40%) | Nm | 670 / 536 |
| Tool magazine capacity | ||
| SPEED a SPRINT | - | 60 |
| POWER | - | 45 |
|
Machine dimensions |
||
|
Length x width x height |
mm | 6 400 x 5 800 |
|
Machine weight |
kg | 40 000 |
