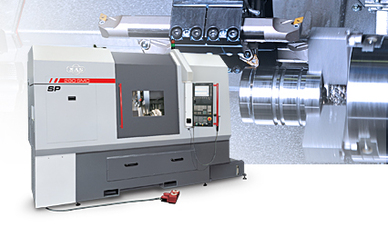

SP 280 CNC draaimachine

Merk : MAS Kovosvit
Type : SP 280

max. Ø 280 mm, max. l. 570 mm


Productomschrijving
Working space

 SP280

 MC

 Y

 SMC

 SY

Swing dia. over bed mm

570

Swing dia. over bed mm

280

Max. turning length A5/A6 mm

535

535

450

Spindle
Spindle with belt drive - A5/A6 rpm

4700/4000

-

-

-

-

Motor spindle- A5 rpm -

4700

Counter spindle - A5

rpm

-

-

-

6000

Tool head
Number of positions -

12

Tailstock
Taper - MORSE -

Mo 5

-

-

Machine dimensions
Length x width x height   mm

3875 x 2122 x 2345

Weight

kg

7200

7500

7700

7800

7900



Machinespecificaties, klik hier



Machine highlights

  • Five technological variants of each machine size enable flexible choice of optimum machine variant, adapted to your technological requirements, from small-batch to specialized mass production.
  • Solid machine base and bed guarantee high machine rigidity.
  • Distortions of mechanical machine parts are verified by means of a numerical finite elements method – FEM.
  • Dynamics and stability of axis motion are checked by means of advanced computation methods.
  • Spindle units enable machining with the high performance.
  • Synchronous integrated spindle motors provide the high dynamics of spindle functions and a powerful rotary axis C.
  • Carriages of linear axes, the right headstock or tailstock body move on the rolling guideways and guarantee high accuracy of positioning and interpolated motion of axes and carriages.
  • Rigidity of the upper carriage three-axis version is emphasized by virtual motion of axis Y which is composed of interpolation of real axes X and Y’ making an angle of 30 degrees.
  • Programmable tailstock displacement reduces interventions of operating staff in machining process otherwise needed.
  • Optional applicable state-of-the-art control systems by SINUMERIK 840D sl, GE FANUC 0i and GE FANUC 30i guarantee excellent control properties and programmer comfort.
  • The machines meet your expectations in terms of easy operation including integrated programming at workshop.

Main spindle drives

  • Main spindle belt drive for machine version SP 180 / SP 280
  • Main motor-spindle for machine version SP 180 / SP 280 MC, Y, SMC, SY
MAS SP 280
