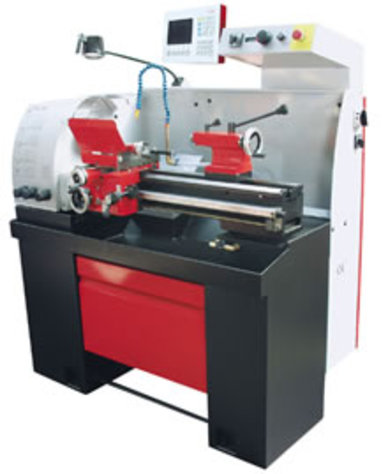

INTURN 280 draaimachine
Merk : Intos
Type : INTURN 280
Ø 280 mm, l = 650 mm
Productomschrijving
DESCRIPTION:
Small. Precise. Top quality.
The INTURN 280 is a small conventional lathe for the most demanding tasks. In lieu of a gearbox the EMCOMAT 14 has an infinitely variable electronic speed regulator. A motor with formidable 5,4 kW (7,24 hp) drive performance provides the necessary torque - unheard of for a lathe of this size. The INTURN 280 also offers the option of an integrated digital display.
The technology. Headstock made of vibration reducing, heavily ribbed grey cast iron. The stiff, large main spindle moves on high-precision, adjustable tapered roller bearings. Short taper connection CAMLOCK ASA 5.9 D1. Reverse gear unit completely enclosed. Scraped gear wheels and the axial shift when reversing raise operating reliability and running smoothness.
Slide: longitudinal slide with no-play prism guide. Setting with pressure strip. Feed automatic or with hand wheel. Longitudinal and cross slides can both be clamped. The upper slide with swallowtail guide can be pivoted 360°. The feed lever with safety lock prevents the longitudinal and cross feeds from interconnecting.
Infinite speed adjustment. The INTURN 280 does not have a manual transmission. An electronic speed regulation system and no less than 5,4 kW (7,2 hp) drive performance ensure the right speed and torque across the entire rpm range.
STANDARD EQUIPMENT:
- Machine including machine stand
- Single tool post
- Electric chuck guard
- Belt drive for feed gear mechanisms
- 1 center for main spindle and tailstock
- 3 shear pins
- Driving pin
- Operating and maintenance tools
OPTIONAL EXTRAS:
- on request
MACHINE SPECIFICATIONS:
| WORKING CAPACITY | INTURN 280 SMART | INTURN 280 DIGITAL | |
|---|---|---|---|
| Swing over bed | mm | 280 | 280 |
| Swing over cross slide | mm | 170 | 170 |
| Distance between centres | mm | 650 | 650 |
| Max. weight of workpiece between centres | kg | 80 | 80 |
| SPINDLE | |||
| Bore | mm | 40 | 40 |
| Spindle speed | 1/min | 60-4 000 | 60-4 000 |
| Spindle nose size | CAMLOCK | DIN 55029 S4 | DIN 55029 S4 |
| Output 100% / 40% | kW | 5,4/7,5 | 5,4/7,5 |
| CARRIAGE | |||
| Working feed (longitudinal) | mm.ot-1 | 0,03-0,3 | 0,03-0,3 |
| Working feed (cross) | mm.ot-1 | 0,015-0,15 | 0,015-0,15 |
| LEAD OF THEAD | |||
| metric treads | mm | 14 (0,25-2,5) | 14 (0,25-2,5) |
| WITH GEAR SET OPTION, ADD. | |||
| metric treads | mm | 13 (0,125-5) | 13 (0,125-5) |
| module theads | modul | 12 (0,25-2,5) | 12 (0,25-2,5) |
| Diametral Pitch threads | D.P. | 25 (96-11) | 25 (96-11) |
| TAIL STOCK | |||
| Tailstock sleeve diameter | mm | 30 | 30 |
| Taper of the center | MT2 | MT2 | |
| Tailstock sleeve travel | mm | 80 | 80 |
| MACHINE | |||
| Total input required | kVA | 7 | 7 |
| Length | mm | 1 280 | 1 280 |
| Width | mm | 730 | 730 |
| Height | mm | 1 480 | 1 480 |
| Weight | kg | 243 | 243 |
| Digitální odměřování | kg | no | Standard |
